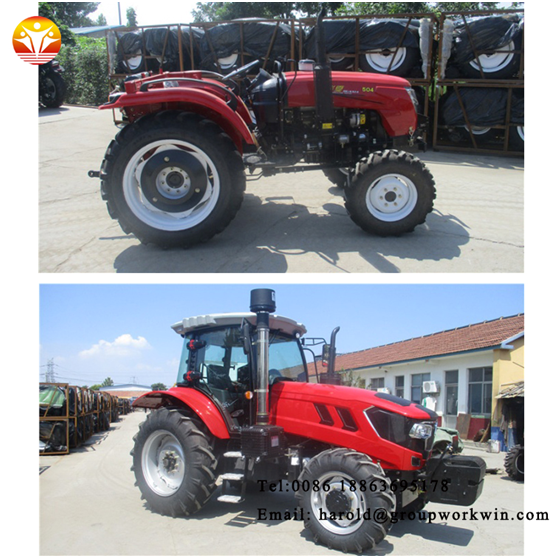

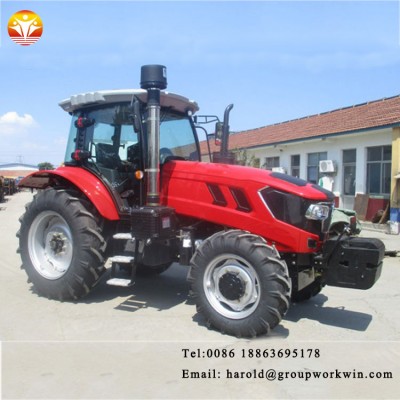

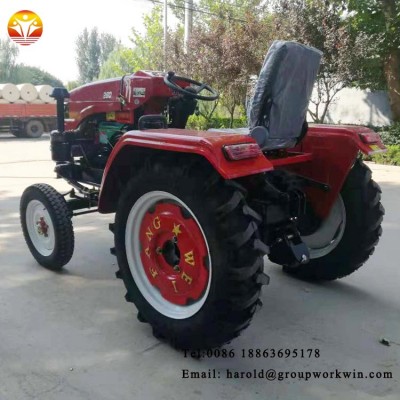

Tractor

Tractor is a power machine used for towing and driving all kinds of supporting equipment, completing agricultural field operations, various earthwork operations, transportation operations and fixed operations. The tractor must be combined with various work tools to form a tractor unit to perform various operations.

Model				JM-204
Drive Type				4WD
Overall Dimensions (mm)				3080x1280x1930
LWH(mm):
Wheel Track(mm)	Front			1000-1100
	Rear			1040-1200
Wheel Base(mm)				1645
Ground Clearance (mm)				295
Rated Traction Force(N)				4800
Construction Mass(kg)				1120
Min.Turning Radius(m)				2.5
Theoretical Speed		Forward		1.68,3.31,5.52,7.75,15.30,25.50
(Without creeper)				0.31,0.62,1.03,1.45,2.85,4.76
( km/h)		Reverse		1.33,6.15,0.25,1.15
Engine	Model			380
	Type			3-Cylinder Vertical,
				water cooled,4 stroke cycle
	Rated Power(kw/hp)			14.7/20
	Rated Speed (rpm)			2400
	Bore*Stroke(mm)			80*90
	Total Displacement(L)			1.357
Drive	Clutch			Dual-Stage
System	Gear Box			(3+1)*2
	Main Drive			One Pair of Spiral Bevel Gearing
	Differential			Bevel Gear
	Differential Lock			Jaw Lock
	Final Transmission			External gearing, Spur Gear
Traveling	Tyre		Front	6.00-12
Mechanism			Rear	8.3-24
	Steering Gear			Full Hydraulic Steering
	Brake			Shoe type
Working	Hydraulic System		Lifting Capacity at	3600
Device			610mm Behind Lift Point (N)
			3-Point Suspension	Category:I
	P.T.O		Speed (rpm)	540/1000
	Shaft		Spline Size	35Rectangular 6 Spline

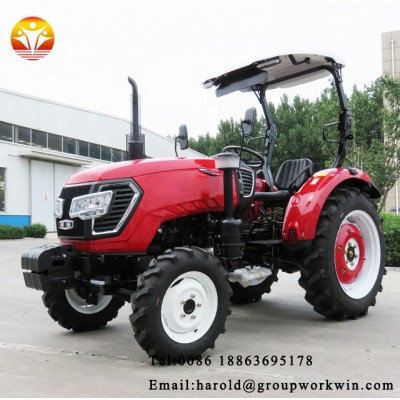

OPTIONS				CANOPY
